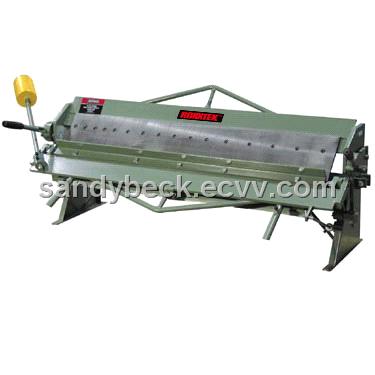

BOX a PAN SHEET METAL HAND BRAKE: See chart below. Incorporates all of the outstanding features of the standard hand brake plus removable, sectioned fingers that can bend any length of metal from 3 inches long to the full length of the machine. Boxes and pans can be up to 6 inches deep. A very versatile well built Chicago Dreis r Krump machine.
Baileigh offers one of the most extensive lines of bending brakes on the market today. We have metal bending brakes from 24 inches up to 13 feet in length. Capacities range from 22 gauge down to 10 gauge mild steel. We offer standard manual leaf or programmable hydraulic type bending brake machines. Our sheet metal brakes can be broken down into two classifications, straight brakes or box and pan brakes.
Our box and pan brake brakes are all constructed with the best quality steel on the market and designed for years of service. Where needed we use heavy duty truss rods on the lifting apron and upper beam. Depending on the bending brake machine we use springs, counter weights or hydraulics to help lift the apron. Our sheet metal brakes have lubrication points where needed and have hardened fingers and surface areas where needed. Sturdy floor frames are standard.
The manual straight brake and standard box and pan sheet metal benders clamp the material with the top beam with the finger or die. Then the counter weighted assist helps the operator lift the bottom apron to complete the bend. Stop rods help with repeating the same angles and gap adjustments assist when changing materials and thicknesses.
